Solar radiation instruments bound for space station


The latest instruments to gauge the energy Earth receives from the sun reached orbit Dec. 15 en route to the International Space Station. Scientists say data from the mission could be more important than any other in understanding not only the sun’s effects on Earth’s climate but people’s influence on it as well.

Scientists have been taking measurements of the sun’s energy from space continuously since 1978, but that record has been in jeopardy in recent years.

The instruments currently gauging total radiant energy from the sun, plus how the energy is distributed across the electromagnetic spectrum, are 10 years past their projected lifespan. Replacements bound for space in 2011 were lost when NASA’s Glory satellite failed to reach orbit. A NASA investigation found that the rocket’s fairing system did not separate properly.

Staff at the University of Colorado’s Laboratory for Atmospheric and Space Physics in Boulder have been putting NASA’s existing satellite to sleep each night and manually waking it up each morning — with every orbit — to help preserve its failing battery.

“The value of this record is enhanced by its being continuous,” said lead mission scientist Peter Pilewskie, who spoke with Aerospace America prior to the launch of the Total and Spectral Solar Irradiance Sensor, or TSIS-1. “If there’s a break, we lose accuracy in the measurements.”

The unbroken, nearly 40-year record of total solar irradiance has revealed solar activity occurring in 11-year cycles, with energy output about 0.1 percent greater during a “solar maximum” than in the minimum phase. If that number seems small, consider that the sun is the planet’s primary energy source. That 0.1 percent “still represents a lot of energy,” Pilewskie sad.

The higher energy output during a solar maximum is understood to correlate with temperatures 0.1 degree Celsius warmer. Pilewskie predicts that future data will chart wider swings in solar activity but doesn’t think a corresponding temperature spike would absolve humans from having a hand in Earth’s warming trend, which has occurred during a less active period for the sun overall.

“Take the last 40 years — there have been some rather large changes in Earth’s climate,” Pilewskie said. “There’s no evidence that the sun has changed that much in four decades.”

By comparing the record of solar energy with an even older record of sunspots, researchers can extrapolate past solar activity, he said.
“If we didn’t have these very careful measurements of the sun, we wouldn’t be able to make sense of these other climate factors,” such as greenhouse gases, Pilewskie said.

The total solar irradiance record started as part of the Earth Radiation Budget experiment in 1978, continuing under the ACRIM, or Active Cavity Radiometer Irradiance Monitor, program. The new hardware includes upgraded versions of the monitors currently collecting data aboard NASA’s Solar Radiation and Climate Experiment satellite known as SORCE.

TSIS-1’s Total Irradiance Monitor, or TIM, intended to extend the 40-year record, is slightly more accurate than its predecessor.

“It’s an incremental improvement on an already incredible instrument,” Pilewskie said.

The TIM gathers solar radiation on a little black cone pointed at the sun. Solar energy heats up the sensor. Using electrical power, the instrument heats an identical cone facing away from the sun, determining its solar measurement based on the energy required to do so.

Continuing a 14-year spectral record, the new Spectral Irradiance Monitor, or SIM, works similarly but breaks up the light using a prism and measures wavelengths individually, Pilewskie said. The breakdown is useful in climatology because energy of different wavelengths behaves differently in different parts of the atmosphere.

NASA’s Goddard Space Flight Center in Greenbelt, Maryland, manages the TSIS-1 project. Under a $90 million contract, the CU-Boulder lab has built and will operate TSIS-1 and distribute its data to the scientific community.

Launched from Kennedy Space Center atop a SpaceX Falcon 9 rocket, TSIS-1 is traveling in a reused Dragon cargo capsule to the International Space Station, where it’s expected to arrive Dec. 17. The flight was SpaceX’s first to reuse both a Dragon capsule and first-stage booster rocket.

Pilewskie anticipates that astronauts operating the ISS’ robotic arm will install the TSIS-1 solar instruments on an ExPRESS Logistics Carrier platform sometime after Christmas, with the first data returned by early April.

CU-Boulder’s Pilewskie said the controversy surrounding climate makes a continuous, accurate solar record that much more important.

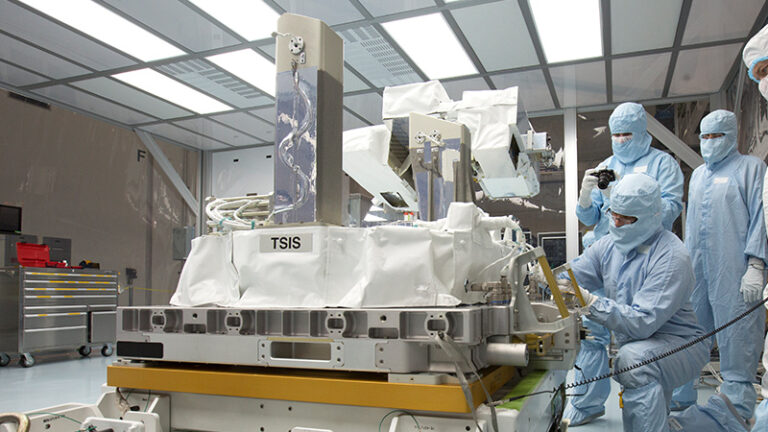

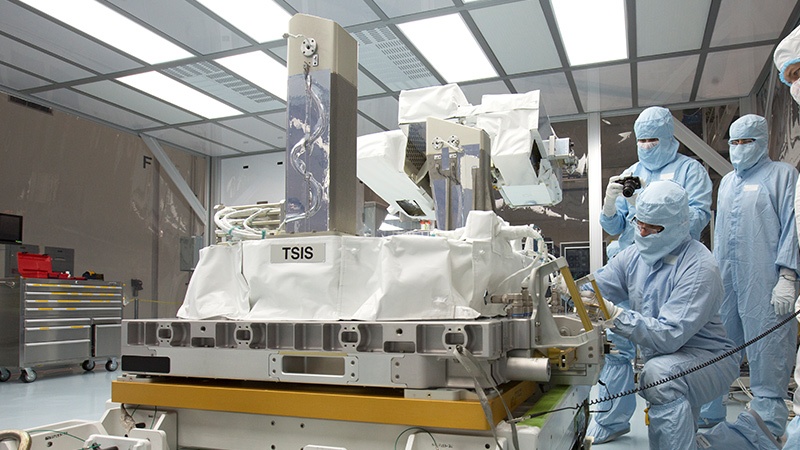

Editor’s note: In the image at the top of this page, researchers and technicians prepare the Total and Spectral Solar Irradiance Sensor-1 for launch at Kennedy Space Center’s Space Station Processing Facility in Florida in September.

Related Topics

Earth SciencesSpace ScienceUnmanned Spacecraft

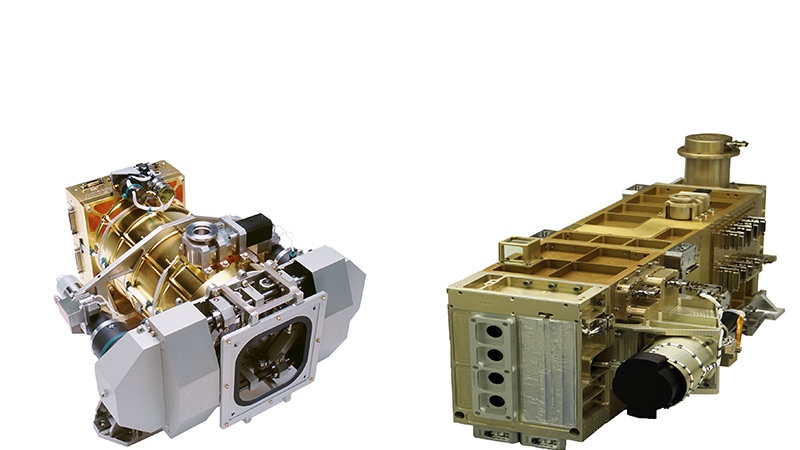

The Total Irradiance Monitor, left, and the Spectral Irradiance Monitor are mounted on the Total and Spectral Solar Irradiance Sensor-1, which was launched Dec. 15. Credit: University of Colorado
